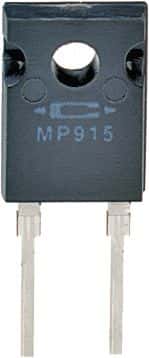

Caddock MP915-500-1% technical specifications.
| Package/Case | TO-126 |
| Features | Moisture Resistant |
| Lead Free | Lead Free |
| Lead Length | 11.4mm |
| Lead Pitch | 0.01inch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 15W |
| Number of Terminations | 2 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resistance | 500R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | Kool-Pak®MP900 |
| Termination | Radial |
| Thickness | 0.01inch |
| Tolerance | 1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 0.01inch |
| RoHS | Compliant |
