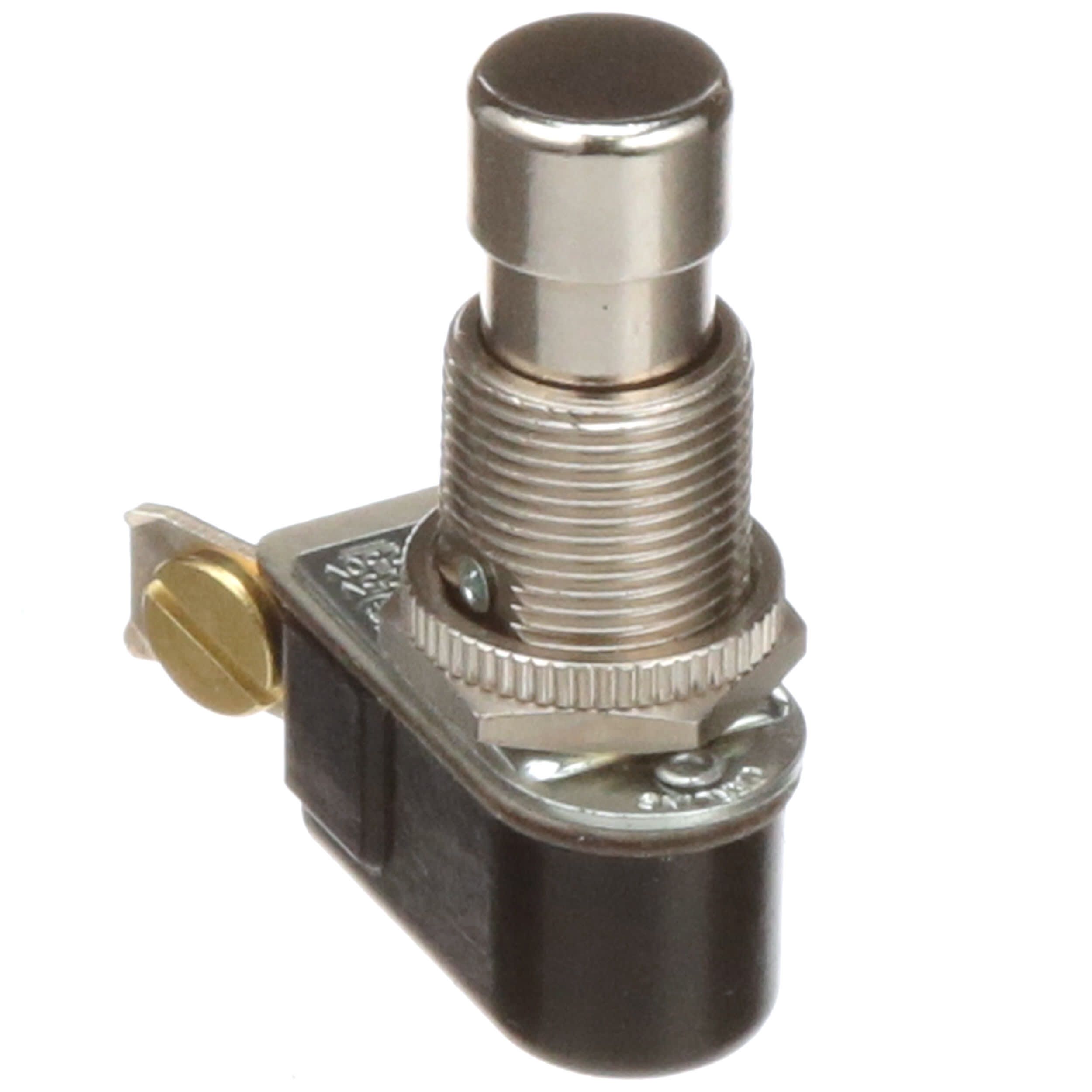

Illuminated & Non-Illuminated Pushbutton Switch, SPST, Off-On, Latched, featuring a 6A contact current rating and 125VDC voltage rating. This panel mount switch offers a round, button actuator with a 0.406-inch diameter and 11.09mm length. It boasts a 250V AC/DC maximum voltage rating, 25,000 electrical cycles, and 100,000 mechanical cycles. Termination is via screw terminals, and the metal case is UL and CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carling Technologies 110-SP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.406inch |
| Actuator Length | 11.09mm |
| Actuator Type | Round, Button |
| Approvals | UL, CSA |
| Package/Case | Metal |
| Contact Current Rating | 6A |
| Contact Plating | Nickel |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 6A |
| Electrical Life | 25000Cycles |
| Lead Free | Contains Lead |
| Length | 30mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 110 |
| Switch Function | Off-On |
| Termination | Screw |
| Throw Configuration | SPST, SP |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
| Width | 13.3mm |
| RoHS | Compliant |
