DPST toggle switch featuring a latched, on-off function with a standard round, bat-type actuator. Rated for 15A at 250VAC, this non-illuminated or illuminated switch offers a 250V maximum voltage rating and a 125V AC rating. It boasts a silver contact material with nickel plating, providing 50,000 electrical cycles and 100,000 mechanical cycles. Designed for panel mounting with a threaded bushing, it utilizes quick connect terminals and operates within a 0°C to 85°C temperature range. RoHS compliant and UL/CSA approved.
Voltage Rating250V
Current Rating15A
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Carling Technologies 2GK51-73 technical specifications.
General
Actuator Length
17.45mm
Actuator Material
Nylon, Brass
Actuator Type
Standard Round
Approvals
UL, CSA
Contact Current Rating
15A
Contact Material
Silver
Contact Plating
Nickel
Current Rating
15A
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
33.2mm
Max Operating Temperature
85°C
Max Voltage Rating (AC)
250V
Mechanical Life
100000Cycles
Min Operating Temperature
0°C
Mount
Panel, Bushing
Number of Poles
2
Number of Positions
2
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
G
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating
250V
Voltage Rating (AC)
125V
Width
19.1mm
Compliance
RoHS
Compliant
Datasheet
Carling Technologies 2GK51-73 Datasheet
Download the complete datasheet for Carling Technologies 2GK51-73 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

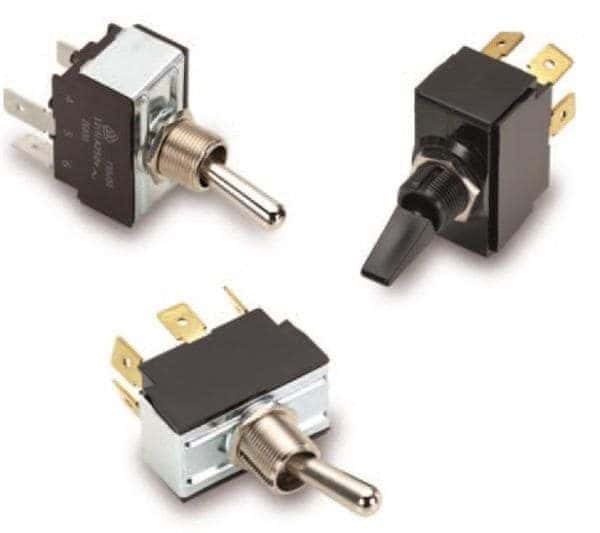

Product Images
