DPST toggle switch featuring a latched, bat-type actuator with a 17.45mm nylon and brass construction. Rated for 15A at 250VAC, this non-illuminated or illuminated switch offers a 2-position On-Off function with screw terminals for panel mounting. Electrical life is 50,000 cycles, with a mechanical life of 100,000 cycles, and it operates within a temperature range of 0°C to 85°C. Approvals include UL and CSA, and the component is RoHS compliant.
Voltage Rating250V
Current Rating15A
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Carling Technologies 2GK54-73 technical specifications.
General
| Actuator Length | 17.45mm |
| Actuator Material | Nylon, Brass |
| Actuator Type | Standard Round |
| Approvals | UL, CSA |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Contact Plating | Nickel |
| Current Rating | 15A |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Contains Lead |
| Length | 33.2mm |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | 0°C |
| Mount | Panel, Bushing |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 102 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
| Width | 19.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies 2GK54-73 Datasheet
Download the complete datasheet for Carling Technologies 2GK54-73 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

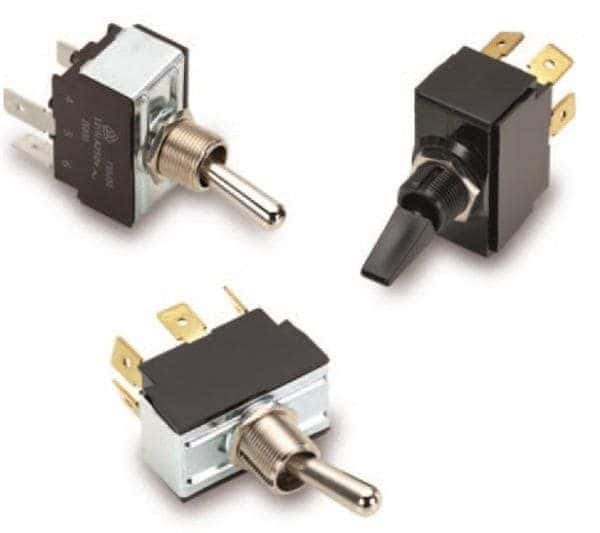

Product Images
