DPDT toggle switch featuring a latched, 3-position On-Off-On function with solder terminals and a standard round, bat-type actuator. Rated for 15A at 250VAC, it offers 50,000 electrical cycles and 100,000 mechanical cycles. Constructed with silver contacts and nickel plating, this panel-mount switch operates within a 0°C to 85°C temperature range and is UL/CSA approved.
Voltage Rating250V
Current Rating15A
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Carling Technologies 2GM50-73 technical specifications.
General
| Actuator Length | 17.45mm |
| Actuator Material | Nylon, Brass |
| Actuator Type | Standard Round |
| Approvals | UL, CSA |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Contact Plating | Nickel |
| Current Rating | 15A |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Bushing |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G |
| Switch Function | On-Off-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies 2GM50-73 Datasheet
Download the complete datasheet for Carling Technologies 2GM50-73 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

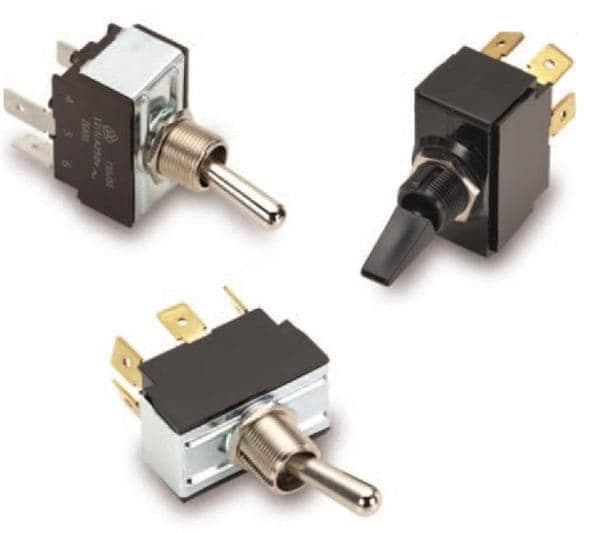

Product Images
