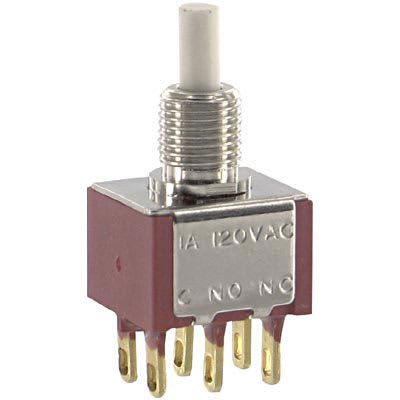

DPDT pushbutton switch featuring a 1A contact current rating and 120V AC / 28V DC voltage rating. This illuminated switch offers a 2-position, ON-(ON) function with a straight, plunger-style actuator measuring 5.2mm. Constructed with a copper alloy, silver-plated contact material, it boasts an electrical life of 50,000 cycles and mounts directly to panels. Operating within a -30°C to 85°C temperature range, this RoHS compliant component is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carling Technologies 3MN-DP-7-P1-B11-M1GE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Carling Technologies 3MN-DP-7-P1-B11-M1GE technical specifications.
| Actuator Length | 5.2mm |
| Actuator Material | Polyester, Thermoplastic |
| Actuator Type | PLUNGER |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy, Silver |
| Contact Plating | Silver |
| Contact Voltage Rating (AC) | 120V |
| Contact Voltage Rating (DC) | 28V |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Lead Free | Contains Lead |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 3MN |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating | 120V |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
| Width | 11.4mm |
| RoHS | Compliant |
Download the complete datasheet for Carling Technologies 3MN-DP-7-P1-B11-M1GE to view detailed technical specifications.
