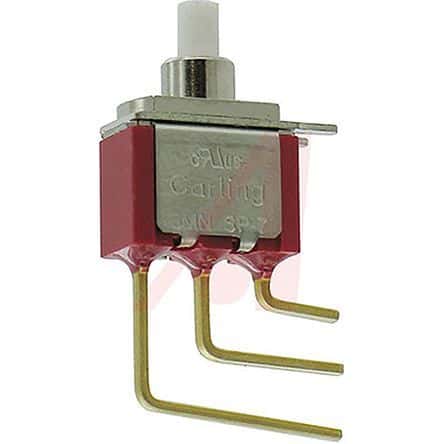

Illuminated pushbutton switch featuring a momentary ON-OFF function with SPDT/SPST/SP throw configuration. Rated for 1A at 120VAC and 28VDC, this component offers a robust electrical life of 50,000 cycles. It mounts via through-hole, vertical PCB termination with PC pins and utilizes copper alloy contacts with gold/silver plating. The switch operates within a temperature range of -30°C to 85°C and boasts IP68 ingress protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carling Technologies 3MN-SP-7-P1-B6-M7GE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Carling Technologies 3MN-SP-7-P1-B6-M7GE technical specifications.
| Actuator Length | 7.5mm |
| Actuator Material | Polyester, Thermoplastic |
| Approvals | UL |
| Contact Material | Copper Alloy, Silver |
| Contact Plating | Gold, Silver |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Illuminated |
| Lead Free | Contains Lead |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Vertical, PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Vertical |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP68 |
| RoHS Compliant | Yes |
| Series | 3MN |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT, SPST, SP |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
| Width | 6.6mm |
| RoHS | Compliant |
Download the complete datasheet for Carling Technologies 3MN-SP-7-P1-B6-M7GE to view detailed technical specifications.
