PackageMetal
Voltage Rating250V
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Carling Technologies CLB-153-11A3N-B-A technical specifications.
General
| Actuator Type | Push to Reset |
| Approvals | UL, CE, TUV |
| Breaker Type | Thermal |
| Package/Case | Metal |
| Color | Black |
| Current Rating | 15A |
| Length | 35mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Panel, Screw |
| Number of Poles | 1 |
| Overall Depth | 58.6mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CLB |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 32V |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies CLB-153-11A3N-B-A Datasheet
Download the complete datasheet for Carling Technologies CLB-153-11A3N-B-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

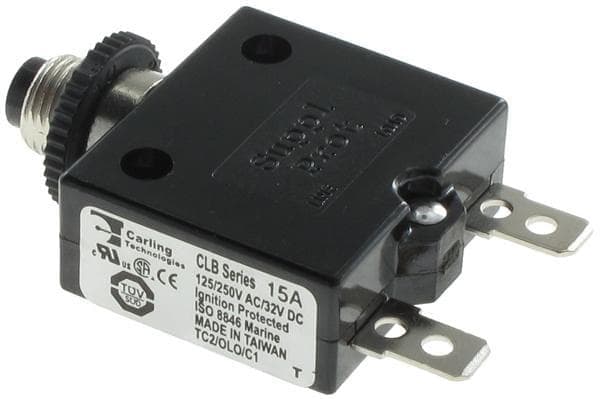

Product Images
