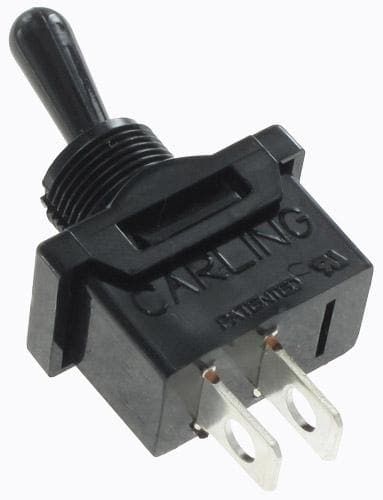

This toggle switch features a 10A current rating and 250V maximum voltage rating, with a nylon actuator and polycarbonate body. It is approved for use in UL and CSA environments and has a straight orientation. The switch is mounted on a panel and has a solder termination. The actuator is made of nylon and is 17.44mm in length, with a black color. The switch has a SPST throw configuration and is illuminated.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carling Technologies DA100-BB-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Length | 17.44mm |
| Actuator Material | Nylon |
| Approvals | UL, CSA |
| Body Material | Nylon, Polycarbonate |
| Contact Current Rating | 10A |
| Current Rating | 10A |
| Illumination Type | Illuminated |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel |
| Orientation | Straight |
| Reach SVHC Compliant | Unknown |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| RoHS | Compliant |
