Carling Technologies
V1D2BT0B-FA8C00-000
CARLING TECHNOLOGIES V1D2BT0B-FA8C00-000 ROCKER SWITCH, SPDT, 20A, 12VDC, BLACK
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Carling Technologies V1D2BT0B-FA8C00-000 technical specifications.
General
| Actuator Type | Rocker |
| Contact Current Rating | 20A |
| Contact Material | Silver |
| Illumination Type | Illuminated, Lamp |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Snap in |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies V1D2BT0B-FA8C00-000 Datasheet
Download the complete datasheet for Carling Technologies V1D2BT0B-FA8C00-000 to view detailed technical specifications.
No datasheet is available for this part.

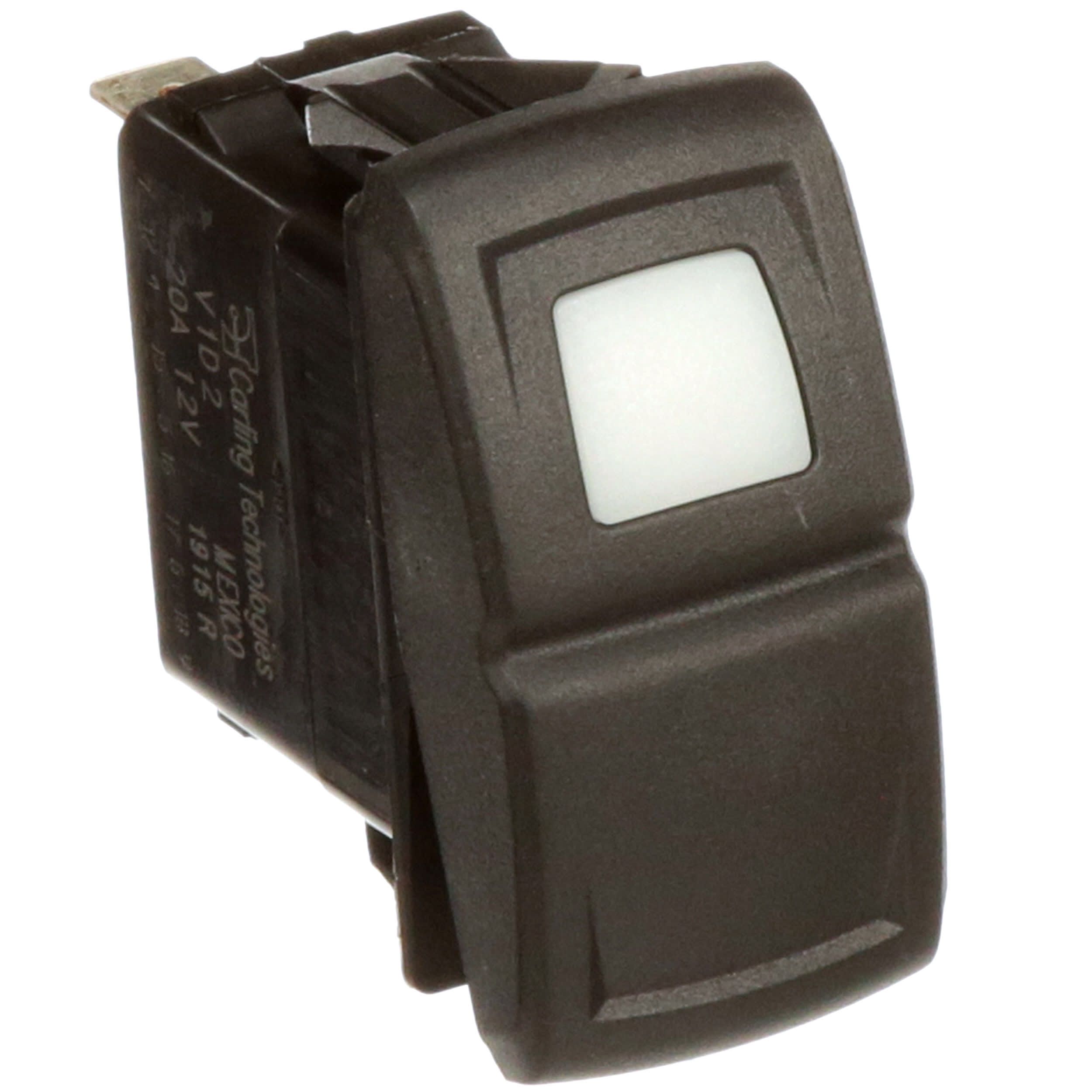

Product Images
