Carling Technologies
V1D2GHNB-AAC00-000
Illuminated Rocker Switch, SPST, 20A 12VDC, LED Green/Orange, Panel Mount
Illuminated rocker switch featuring SPST, On-Off function with alternate action. Rated for 20A at 12V AC/DC, this panel-mount switch offers a mechanical life of 150,000 cycles and an electrical life of 50,000 cycles. Constructed with a nylon, polycarbonate, and thermoplastic actuator, it boasts IP66 and IP68 ratings for waterproof and dust-tight operation. Available with green or orange LED illumination, it utilizes quick connect terminals and operates within a temperature range of -40°C to 85°C.
Current Rating20A
MountingPanel, Snap in, Brackets
Quick Jump:
Technical Specifications
Carling Technologies V1D2GHNB-AAC00-000 technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon, Polycarbonate, Thermoplastic
Approvals
UL, CSA, VDE
Color
Black
Contact Current Rating
20A
Contact Material
Tin, Silver
Contact Plating
Silver
Current Rating
20A
Electrical Life
50000Cycles
Height
27.4mm
Illumination Color
Green, Orange
Illumination Type
LED, Illuminated
Lead Free
Contains Lead
Length
49.1mm
Max Operating Temperature
85°C
Mechanical Life
150000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
12V
Mount
Panel, Snap in, Brackets
Number of Poles
1
Number of Positions
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP66, Waterproof, Water Resistant, Dust Tight, IP68
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
V-Series Contura
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
12V
DC Rated Voltage
12V
Width
23.9mm
Compliance
RoHS
Not Compliant
Datasheet
Carling Technologies V1D2GHNB-AAC00-000 Datasheet
Download the complete datasheet for Carling Technologies V1D2GHNB-AAC00-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

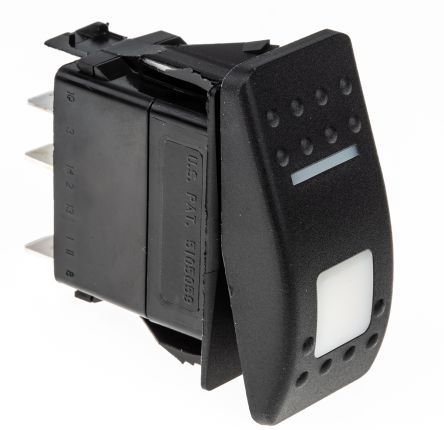

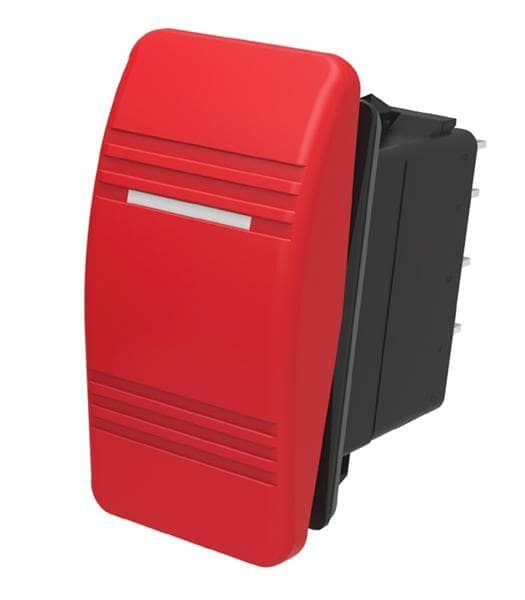

Product Images
