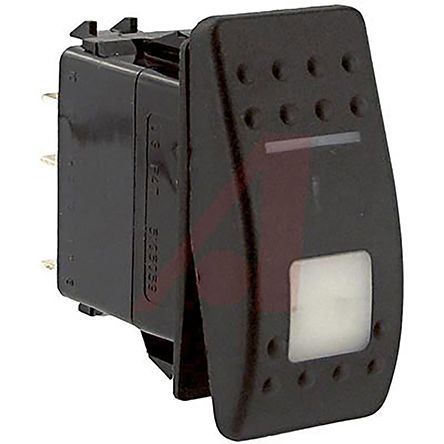

Illuminated rocker switch featuring SPST-NO (Single Pole Single Throw Normally Open) functionality and a 20A contact current rating at 12V DC. This panel-mount, snap-in component offers a 2-position, straight orientation with quick connect termination. Constructed with a nylon, polycarbonate, and thermoplastic actuator, it boasts electrical and mechanical lifespans of 50,000 and 150,000 cycles respectively. Operating within a temperature range of -40°C to 85°C, it is IP66 rated for waterproof, water-resistant, and dust-tight performance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carling Technologies V2D2GHNB-AAC00-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Material | Nylon, Polycarbonate, Thermoplastic |
| Approvals | UL, CSA, VDE |
| Contact Current Rating | 20A |
| Contact Material | Tin, Silver |
| Contact Plating | Tin, Silver |
| Current Rating | 20A |
| Electrical Life | 50000Cycles |
| Height | 27.4mm |
| Illumination Color | White, Orange, Green |
| Illumination Type | LED, Illuminated |
| Lead Free | Contains Lead |
| Length | 49.1mm |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 150000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Snap in |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Waterproof, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Series | V-Series Contura |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 12V |
| DC Rated Voltage | 12V |
| Width | 23.9mm |
| RoHS | Compliant |
