The DPA01CM44 is a 480V relay with a contact current rating of 8A and a switching current of 8A. It has a maximum operating temperature of 50°C and a minimum operating temperature of -20°C. The relay is rated for IP20 and has a termination type of screw. It is mounted on a DIN rail and has a weight of 100g and dimensions of 83.5mm in height, 22.5mm in length, and 99.5mm in width. The DPA01CM44 is approved by UL, CSA, and CE.
Current Rating8A
MountingDIN Rail
Quick Jump:
Technical Specifications
Carlo Gavazzi DPA01CM44 technical specifications.
General
| Approvals | UL, CSA, CE |
| Coil Voltage (AC) | 480V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Current Rating | 8A |
| Height | 83.5mm |
| Length | 22.5mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Operating Supply Voltage | 480V |
| Output Type | RELAY |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | DPA01 |
| Switching Current | 8A |
| Termination | Screw |
| Throw Configuration | SPDT |
| Weight | 100g |
| Width | 99.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Carlo Gavazzi DPA01CM44 Datasheet
Download the complete datasheet for Carlo Gavazzi DPA01CM44 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

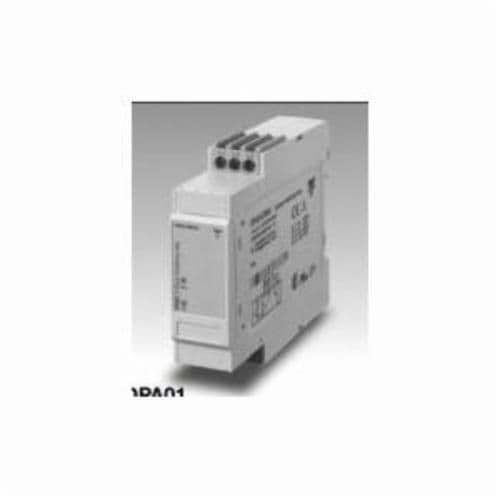

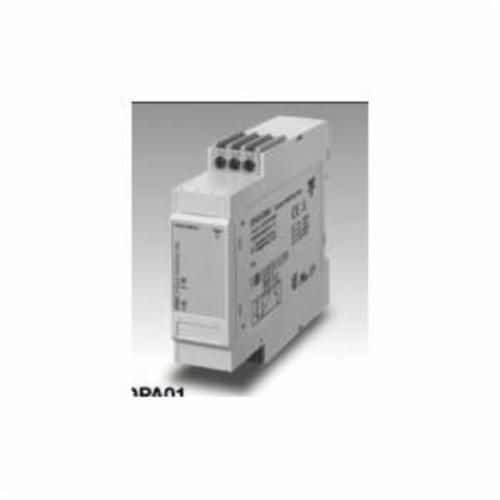

Product Images
