The PUA01CB23500V is a 8A 500V SPDT relay with a socketable mount and a maximum operating temperature of 60°C. It has a voltage rating of 10.417V AC and is rated for IP20. The relay is compliant with UL, CSA, and CE approvals and has a weight of 150g. It measures 80mm in height, 36mm in width, and 94mm in length.
Current Rating8A
MountingSocketable, Socket, Plug-In
Quick Jump:
Technical Specifications
Carlo Gavazzi PUA01CB23500V technical specifications.
General
| Approvals | UL, CSA, CE |
| Coil Voltage (AC) | 115.23kV |
| Contact Material | Tin, Silver |
| Control Voltage | 500V |
| Current Rating | 8A |
| Height | 80mm |
| Length | 94mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 230V |
| Max Supply Voltage | 230V |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 24V |
| Mount | Socketable, Socket, Plug-In |
| Output Type | RELAY |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | PUA01 |
| Termination | Circular |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 10.417V |
| Weight | 150g |
| Width | 36mm |
Compliance
| RoHS | Compliant |
Datasheet
Carlo Gavazzi PUA01CB23500V Datasheet
Download the complete datasheet for Carlo Gavazzi PUA01CB23500V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

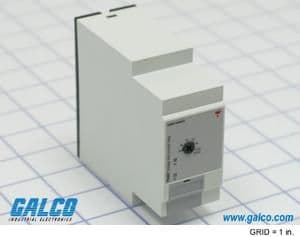

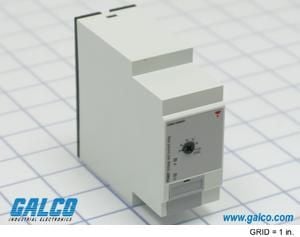

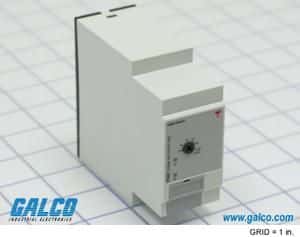

Product Images
