CARLO GAVAZZI

RGC1A23D30KGU

Datasheet

30A 230V AC/DC SSR, 1-Pole, DC Control, Chassis/DIN Mount

Carlo Gavazzi

RGC1A23D30KGU

Name: RGC1A23D30KGU Carlo Gavazzi
Brand: Carlo Gavazzi
SKU: RGC1A23D30KGU

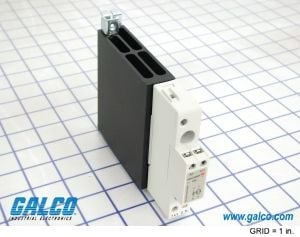

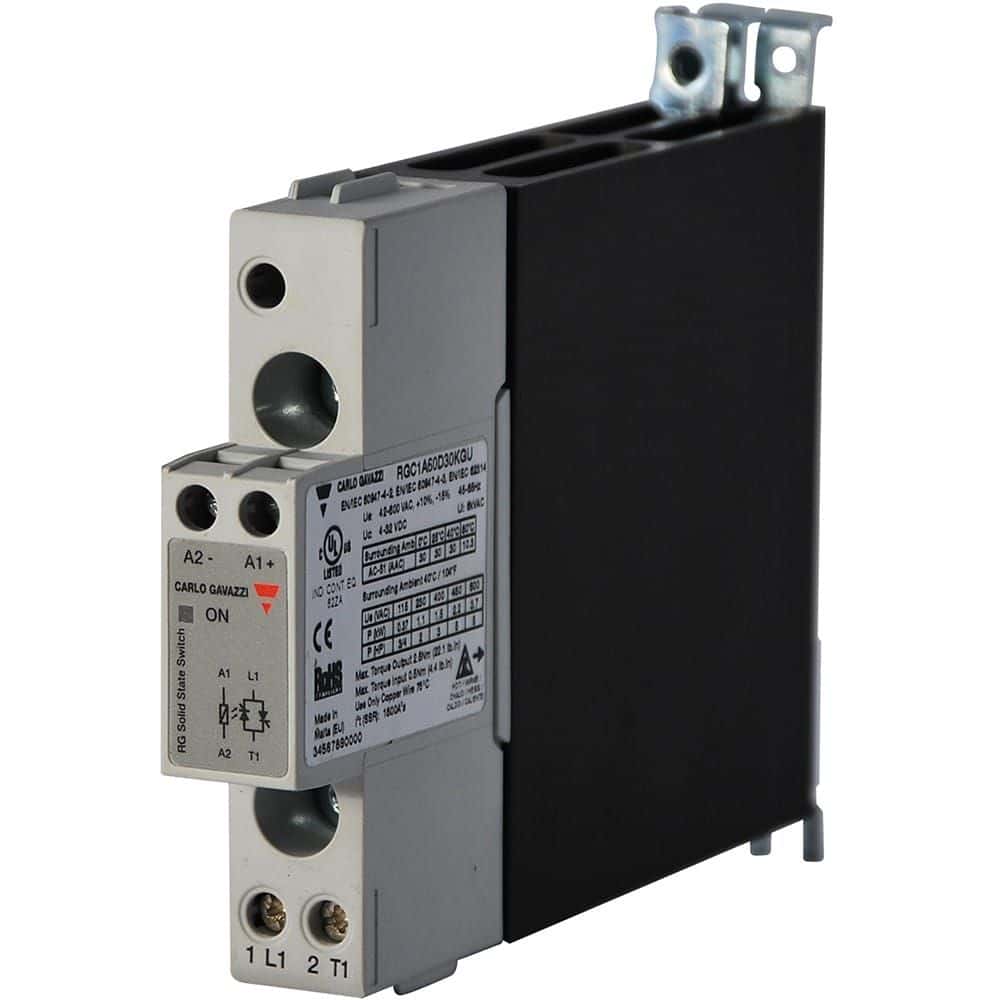

30A 230V AC/DC SSR, 1-Pole, DC Control, Chassis/DIN Mount

Single-pole solid-state relay (SSR) for AC and DC output, featuring a 30A load current rating and a 230V maximum output voltage. Control input is 4-32VDC, with an operating supply voltage range of 24-240VAC. Offers 4kV isolation voltage and operates within a temperature range of -40°C to 80°C. Mountable via chassis, DIN rail, or panel, with screw termination. Approvals include UL, CSA, and CE.

PackageModule

Voltage Rating230V

Current Rating30A

MountingChassis Mount, DIN Rail, Panel

Quick Jump:

Technical Specifications

Carlo Gavazzi RGC1A23D30KGU technical specifications.

General

Approvals	UL, CSA, CE
Package/Case	Module
Current Rating	30A
Depth	140.5mm
Height	110mm
Input Type	DC
Isolation Voltage	4kV
Length	22.5mm
Load Current	30A
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Max Output Current	30A
Max Output Voltage	230V
Max Supply Voltage	240V
Min Supply Voltage	24V
Mount	Chassis Mount, DIN Rail, Panel
Nominal Supply Current	30A
Number of Poles	1
Operating Supply Voltage	240V
Packaging	Bulk
Reach SVHC Compliant	No
Series	RGC
Termination	Screw
Throw Configuration	SPST
Turn-On Delay Time	1s
Voltage Rating	230V
