Single-pole, single-throw solid-state relay with 40A load current and 230V AC output voltage. Features DC input, 4kV isolation voltage, and a 40A maximum output current. Operates within a supply voltage range of 24V to 240V AC, with a nominal supply current of 40A. Mountable via chassis, DIN rail, or panel, with screw termination. Approvals include UL, CSA, and CE, and it operates between -40°C and 80°C.
PackageModule
Voltage Rating230V
Current Rating40A
MountingChassis Mount, DIN Rail, Panel
Quick Jump:
Technical Specifications
Carlo Gavazzi RGC1A23D40KGU technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
Module
Current Rating
40A
Depth
140.5mm
Height
110mm
Input Type
DC
Isolation Voltage
4kV
Length
35.6mm
Load Current
40A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Current
40A
Max Output Voltage
230V
Max Supply Voltage
240V
Min Supply Voltage
24V
Mount
Chassis Mount, DIN Rail, Panel
Nominal Supply Current
40A
Number of Poles
1
Operating Supply Voltage
240V
Packaging
Bulk
Reach SVHC Compliant
No
Series
RGC
Termination
Screw
Throw Configuration
SPST
Turn-On Delay Time
1s
Voltage Rating
230V
Compliance
RoHS
Compliant
Datasheet
Carlo Gavazzi RGC1A23D40KGU Datasheet
Download the complete datasheet for Carlo Gavazzi RGC1A23D40KGU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

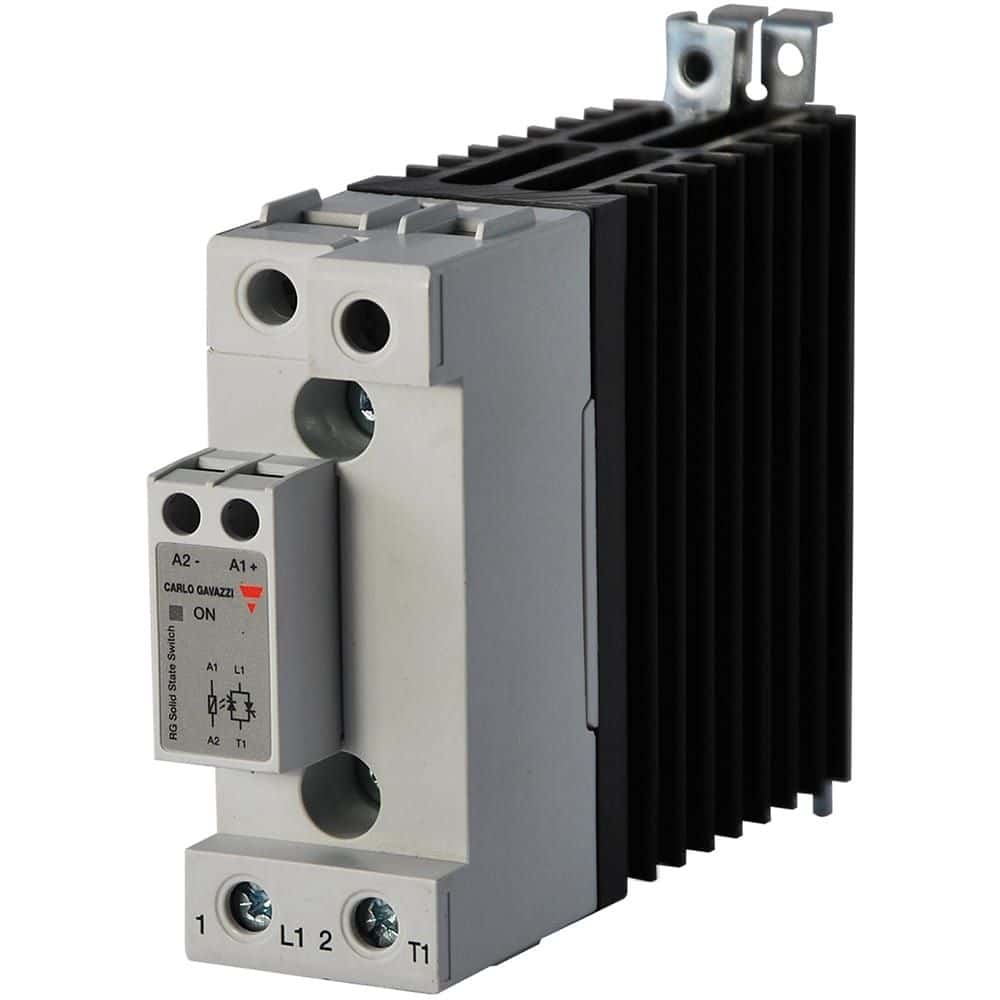

Product Images
