Single pole solid state relay with a 60A contact current rating and 36-660VAC line voltage. Features a 4-32VDC control input and 600V maximum output voltage. Operates within a -40°C to 80°C temperature range and offers 4kV isolation. Designed for chassis or DIN rail mounting with screw termination. Approvals include UL, CSA, IEC, and EN.
PackageModule
Voltage Rating32V
Current Rating60A
MountingChassis Mount, DIN Rail
Quick Jump:
Technical Specifications
Carlo Gavazzi RGC1A60D60KGU technical specifications.
General
| Approvals | UL, CSA, IEC, EN |
| Package/Case | Module |
| Contact Current Rating | 60A |
| Current Rating | 60A |
| Depth | 0.197inch |
| Height | 110mm |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Length | 4.33inch |
| Load Current | 60A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60A |
| Max Output Voltage | 600V |
| Max Supply Voltage | 600V |
| Min Supply Voltage | 42V |
| Mount | Chassis Mount, DIN Rail |
| Nominal Supply Current | 60A |
| Number of Poles | 1 |
| Operating Supply Voltage | 240V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | RGC |
| Termination | Screw |
| Turn-On Delay Time | 1s |
| Voltage Rating | 32V |
| Width | 2.756inch |
Compliance
| RoHS | Compliant |
Datasheet
Carlo Gavazzi RGC1A60D60KGU Datasheet
Download the complete datasheet for Carlo Gavazzi RGC1A60D60KGU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

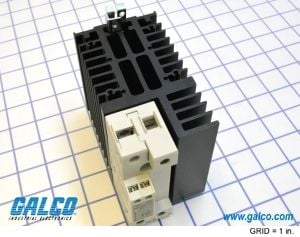

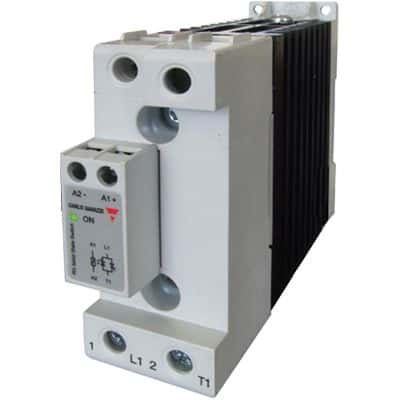

Product Images
