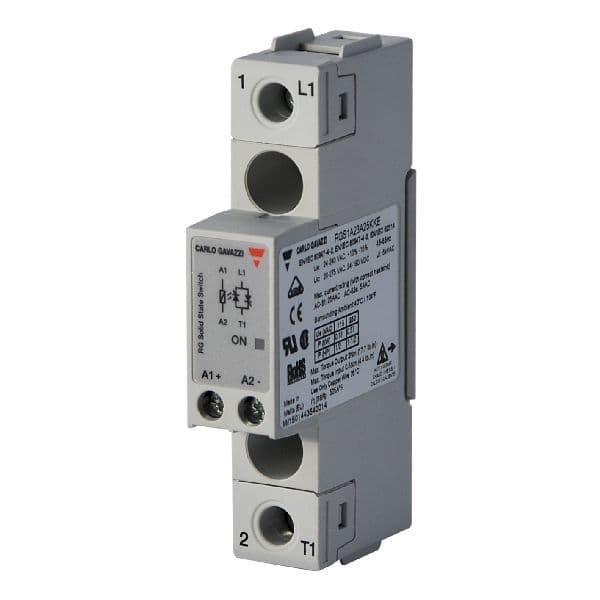

The Carlo Gavazzi RGS1A23D50KKE is a solid state relay module with a maximum load current of 50A and a voltage rating of 230V. It has a maximum operating temperature of 80°C and a minimum operating temperature of -40°C. The relay is RoHS compliant and has a termination type of screw. It is designed for use in AC and DC output applications and is suitable for use in a variety of industrial and commercial settings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carlo Gavazzi RGS1A23D50KKE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Carlo Gavazzi RGS1A23D50KKE technical specifications.
| Package/Case | Module |
| Depth | 51mm |
| Height | 90mm |
| Length | 17.8mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 24V |
| Max Surge Current | 600A |
| Mount | Chassis |
| Package Style | MODULE |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating | 230V |
| DC Rated Voltage | 230V |
| RoHS | Not Compliant |
