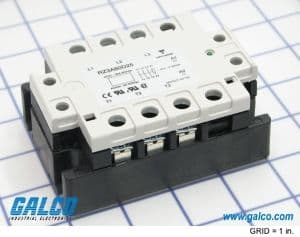

The Carlo Gavazzi RZ3A60D25 is a solid state relay with a 25A current rating and 660V maximum supply voltage. It is available in a module package with screw termination and can be mounted on a chassis, DIN rail, or screw. The relay is RoHS compliant and has approvals from UL, CSA, and CE. It operates within a wide temperature range and has a maximum voltage rating of 600V AC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Carlo Gavazzi RZ3A60D25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Contact Material | Silver |
| Current Rating | 25A |
| Height | 41mm |
| Input Type | DC |
| Length | 73.5mm |
| Load Current | 25A |
| Max Input Current | 23mA |
| Max Output Voltage | 660V |
| Max Supply Voltage (AC) | 660V |
| Min Supply Voltage (AC) | 42V |
| Max Voltage Rating (AC) | 660V |
| Mount | Chassis Mount, DIN Rail, Screw |
| Operating Supply Voltage | 660V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | RZ3A |
| Termination | Screw |
| Throw Configuration | 3PST |
| Voltage Rating (AC) | 600V |
| Width | 103mm |
| RoHS | Not Compliant |
