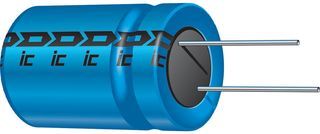

1000µF, 16V radial aluminum electrolytic capacitor for through-hole PCB mounting. Features a 20% tolerance, 105°C maximum operating temperature, and a 680mA ripple current. With a low ESR of 265.3mΩ and a dissipation factor of 0.17%, this component offers reliable performance. Dimensions include a 10mm diameter and 16mm height, with a 0.197-inch lead pitch.
PackageRadial
Capacitance1mF
Voltage Rating16V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 108CKE016M technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.17% |
| ESR (Equivalent Series Resistance) | 265.3mR |
| Height | 16mm |
| Height - Seated (Max) | 0.689inch |
| Lead Length | 15mm |
| Lead Pitch | 0.197inch |
| Length | 0.63inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 680mA |
| RoHS Compliant | Yes |
| Series | CKE |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 108CKE016M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 108CKE016M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

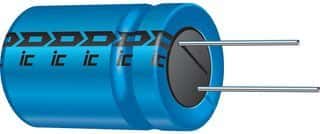

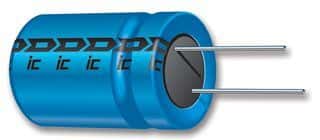

Product Images
