PackageRadial
Capacitance12uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 126KXM100M technical specifications.
General
| Capacitance | 12uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 11.0524R |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Impedance | 2.8R |
| Lead Pitch | 0.098inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 115mA |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 126KXM100M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 126KXM100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

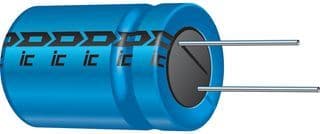

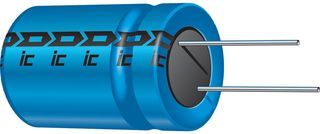

Product Images
