CDE Illinois Capacitor
128KXM6R3MLQ
ILLINOIS CAPACITOR 128KXM6R3MLQ ALUMINUM ELECTROLYTIC CAPACITOR 1200UF, 6.3V, 20%, RADIAL
PackageRadial
Capacitance1.2mF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 128KXM6R3MLQ technical specifications.
General
Capacitance
1.2mF
Package/Case
Radial
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
303.9mR
Height
16mm
Height - Seated (Max)
0.65inch
Impedance
144mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Reach SVHC Compliant
No
Ripple Current
1.43A
RoHS Compliant
Yes
Series
KXM
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
CDE Illinois Capacitor 128KXM6R3MLQ Datasheet
Download the complete datasheet for CDE Illinois Capacitor 128KXM6R3MLQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

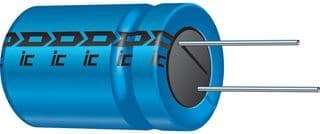

Product Images
