Radial aluminum electrolytic capacitor, 180µF capacitance, 50V DC rated voltage, with 20% tolerance. Features a low ESR of 921mΩ and impedance of 140mΩ, supporting a ripple current of 1.19A. Operates across a wide temperature range from -55°C to 105°C. Through-hole mounting for PCB applications.
PackageRadial
Capacitance180uF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 187KXM050M technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 921mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 140mR |
| Lead Length | 15mm |
| Lead Pitch | 0.138inch |
| Length | 0.79inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 400 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.19A |
| RoHS Compliant | Yes |
| Series | KXM |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 187KXM050M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 187KXM050M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

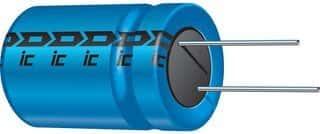

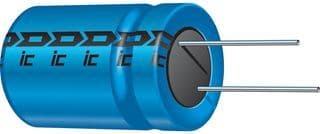

Product Images
