PackageRadial
Capacitance33uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 336KXM035M technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 6.0286R |
| Height | 11mm |
| Impedance | 1R |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Ripple Current | 250mA |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 336KXM035M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 336KXM035M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

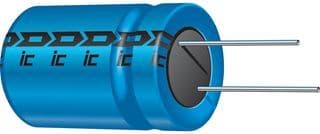

Product Images
