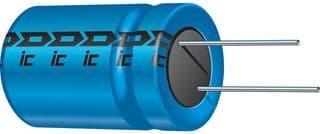

This 330uF radial aluminum electrolytic capacitor has a 16V voltage rating and is suitable for through hole or PCB mounting. It operates within a temperature range of -55°C to 105°C and has a dissipation factor of 0.16%. The capacitor is RoHS compliant but not Reach SVHC compliant. Its impedance is 220mR and ESR is 804mR.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CDE Illinois Capacitor 337KXM016M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 804mR |
| Height | 11.5mm |
| Impedance | 220mR |
| Lead Pitch | 3.5mm |
| Length | 0.452inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Q Factor | 0.16 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KXM |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| RoHS | Compliant |
