CDE Illinois Capacitor
476TTA016MSD
TTA Series 47 uF 16 V ±20 % Through Hole Axial Aluminum Electrolytic Capacitor
PackageAxial
Capacitance47uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 476TTA016MSD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Axial |
| ESR (Equivalent Series Resistance) | 7.0547R |
| Lead Free | Lead Free |
| Length | 0.512inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ripple Current | 90mA |
| RoHS Compliant | Yes |
| Series | TTA |
| Tolerance | 20% |
| Voltage Rating | 16V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 476TTA016MSD Datasheet
Download the complete datasheet for CDE Illinois Capacitor 476TTA016MSD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

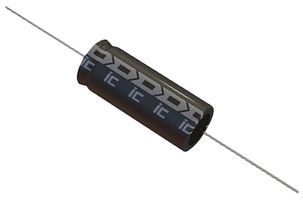

Product Images
