PackageRadial
Capacitance470uF
Voltage Rating16V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 477KXM016MLN technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 564.4mR |
| Height | 12.5mm |
| Impedance | 233mR |
| Lead Pitch | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KXM |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 477KXM016MLN Datasheet
Download the complete datasheet for CDE Illinois Capacitor 477KXM016MLN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

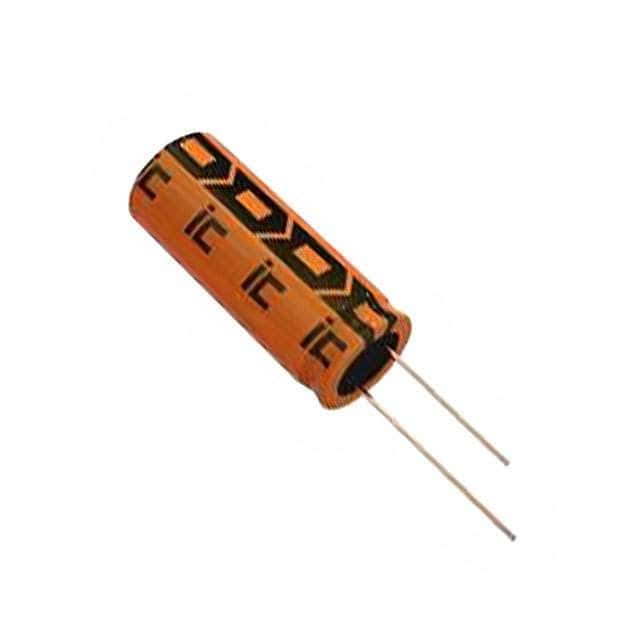

Product Images
