CDE Illinois Capacitor
566KXM100M
ILLINOIS CAPACITOR 566KXM100M CAPACITOR ALUM ELEC 56UF, 100V, 20%, RADIAL
PackageRadial
Capacitance56uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 566KXM100M technical specifications.
General
| Capacitance | 56uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 2.9605R |
| Height | 20mm |
| Impedance | 250mR |
| Lead Pitch | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 566KXM100M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 566KXM100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

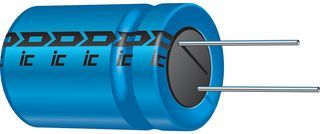

Product Images
