CDE Illinois Capacitor
567KXM050M
560uF 50V Radial Aluminum Electrolytic Capacitor, Through Hole Mount, -55°C to 105°C
This 560uF aluminum electrolytic capacitor is rated for 50V DC and has a tolerance of 20%. It features a radial package with a diameter of 12.5mm and a height of 25mm. The capacitor is RoHS compliant and has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C.
PackageRadial
Capacitance560uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 567KXM050M technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 296mR |
| Height | 25mm |
| Impedance | 59mR |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 567KXM050M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 567KXM050M to view detailed technical specifications.
No datasheet is available for this part.

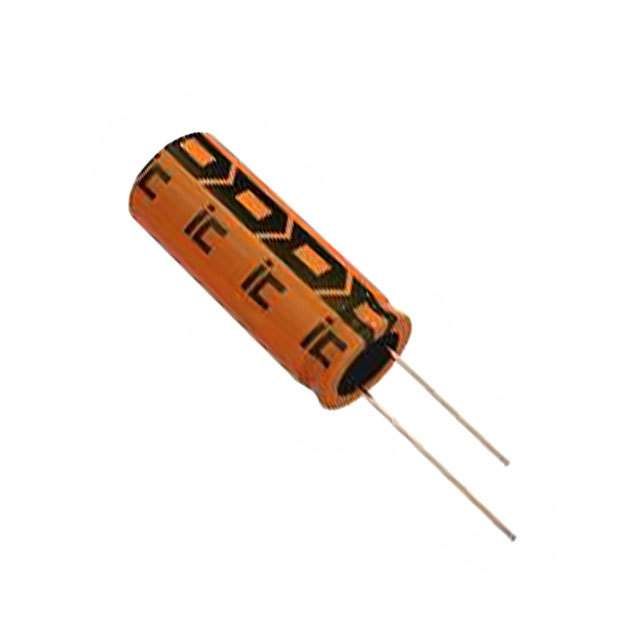

Product Images
