CDE Illinois Capacitor
687KXM010MLN
ILLINOIS CAPACITOR 687KXM010MLN ALUMINUM ELECTROLYTIC CAPACITOR 680UF, 10V, 20%, RADIAL
PackageRadial
Capacitance680uF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 687KXM010MLN technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 463.2mR |
| Height | 12.5mm |
| Height - Seated (Max) | 0.551inch |
| Impedance | 194mR |
| Lead Pitch | 0.197inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 760mA |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 687KXM010MLN Datasheet
Download the complete datasheet for CDE Illinois Capacitor 687KXM010MLN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

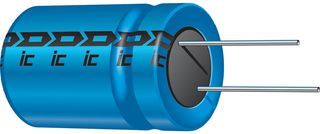

Product Images
