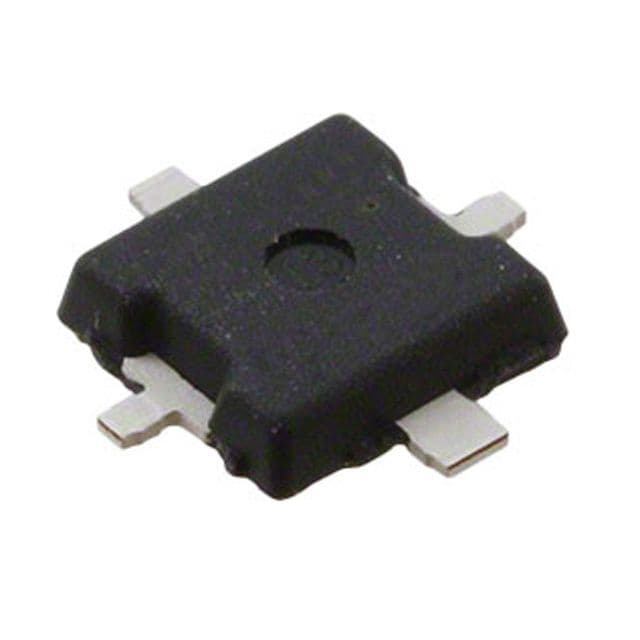

NE5520379A-T1A-A

FET RF 15V 915MHZ 79A-PKG

Frequency915MHz

PackageA

Voltage Rating15V

Current Rating1.5A

Quick Jump:

CEL NE5520379A-T1A-A technical specifications.

Package/Case	A
Continuous Drain Current (ID)	1.5A
Current Rating	1.5A
Drain to Source Breakdown Voltage	15V
Drain to Source Voltage (Vdss)	15V
Frequency	915MHz
Gain	16dB
Gate to Source Voltage (Vgs)	5V
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Max Power Dissipation	20W
Package Quantity	5000
Packaging	Tape and Reel
Polarity	N-CHANNEL
Power Dissipation	20W
Technology	LDMOS
Test Voltage	3.2V
Voltage Rating	15V

RoHS

Compliant
