The OSD15-5T is a TO-5 packaged photodiode with a 5.1mm lead pitch, designed for through hole mounting. It operates over a temperature range of -25°C to 75°C. The device is not RoHS compliant, and its compliance with SVHC regulations is unknown.
PackageTO-5
MountingThrough Hole
PolarityReverse
Quick Jump:
Technical Specifications
Centronic OSD15-5T technical specifications.
General
| Package/Case | TO-5 |
| Lead Pitch | 5.1mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Polarity | Reverse |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | 5T |
| Wavelength | 850nm |
Compliance
| RoHS | Not Compliant |
Datasheet
Centronic OSD15-5T Datasheet
Download the complete datasheet for Centronic OSD15-5T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

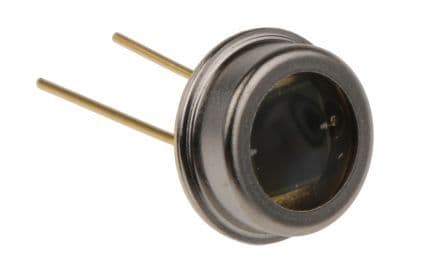

Product Images
