SPDT snap-action switch featuring a button actuator and quick connect termination. Rated for 6A at 250VAC and 48VDC, with a 1.47N operating force. Contacts are copper, gold, and silver, offering 1 change-over function. Durable construction includes a polybutylene actuator and a mechanical life of 15,000,000 cycles, with an electrical life of 6,000 cycles. Mounts via panel or chassis, with dimensions of 20mm length, 6.5mm width, and 6.45mm depth.
Current Rating5A
MountingPanel, Chassis Mount
Quick Jump:
Technical Specifications
Cherry DB1C-B1AA technical specifications.
General
| Actuator Material | Polybutylene |
| Color | Black |
| Contact Current Rating | 6A |
| Contact Material | Copper, Gold, Silver |
| Contact Type | 1 change-over |
| Current Rating | 5A |
| Depth | 6.45mm |
| Electrical Life | 6000Cycles |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 120°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Chassis Mount |
| Number of Positions | 2 |
| Operating Force | 1.47N |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Ratings | IP50 |
| RoHS Compliant | Yes |
| Series | DB |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 48V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Cherry DB1C-B1AA Datasheet
Download the complete datasheet for Cherry DB1C-B1AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

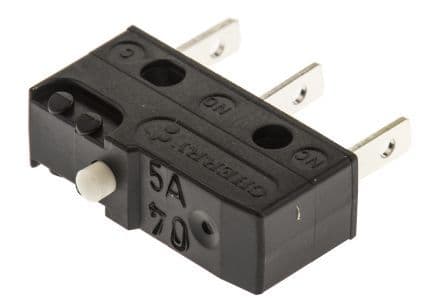

Product Images
