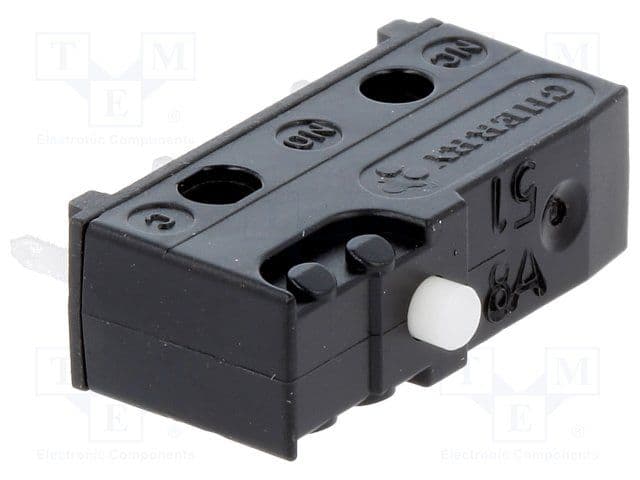

SPDT microswitch featuring a 6A contact current rating at 250VAC. This through-hole mounted switch offers a mechanical life of 15 million cycles and a straight orientation. Constructed with a polybutylene actuator and gold/silver contacts, it operates within a temperature range of -40°C to 120°C and boasts a UL94 V-0 flammability rating. Termination is via PC pins, and the device is RoHS compliant with an IP50 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cherry DB1C-C1AA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cherry DB1C-C1AA technical specifications.
| Actuator Material | Polybutylene |
| Color | Black |
| Contact Current Rating | 6A |
| Contact Material | Gold, Silver |
| Contact Type | 1 change-over |
| Current Rating | 6A |
| Depth | 6.45mm |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 120°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Force | 1.47N |
| Orientation | Straight |
| Ratings | IP50 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Width | 20mm |
| RoHS | Compliant |
