Technical Specifications
Cherry E51-60B technical specifications.
General
| Actuator Type | Lever |
| Contact Current Rating | 6A |
| Contact Material | Brass, Silver |
| Contact Plating | Silver |
| Contact Type | 1 change-over |
| Current Rating | 6A |
| Height | 17.5mm |
| Lead Free | Contains Lead |
| Length | 30.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 0.04N |
| Orientation | Straight |
| Package Quantity | 900 |
| RoHS Compliant | Yes |
| Series | E |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT, SP |
| Voltage Rating (AC) | 250V |
| Width | 30.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Cherry E51-60B Datasheet
Download the complete datasheet for Cherry E51-60B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

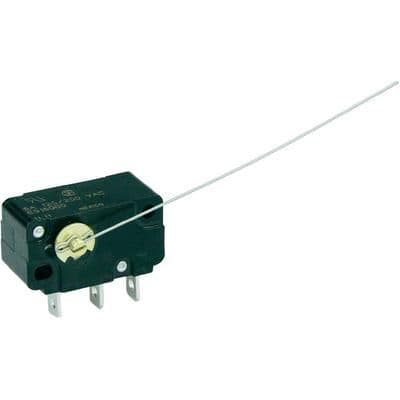

Product Images
