Technical Specifications
Cherry E72-40AT technical specifications.
General
| Actuator Type | PLUNGER |
| Approvals | cULus |
| Contact Material | Silver |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Brackets, Screw, Wire |
| Number of Poles | 1 |
| Operating Force | 300gf |
| Orientation | Straight |
| Package Quantity | 1000 |
| RoHS Compliant | Yes |
| Series | E |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Cherry E72-40AT Datasheet
Download the complete datasheet for Cherry E72-40AT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

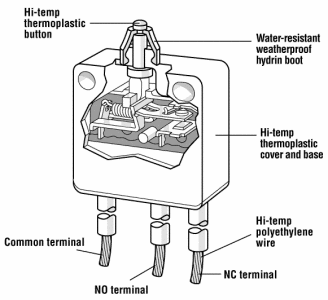

Product Images
