DPDT pushbutton switch featuring a 10A current rating and 250V AC voltage rating. This illuminated and non-illuminated switch offers two change-over contacts with silver/cadmium contact material and plating. Equipped with quick connect termination and a straight, plunger-style thermoplastic/acetal actuator measuring 18.04mm, it is designed for panel mounting. Approvals include VDE and cULus, with a UL94 V-0 flammability rating and RoHS compliance.
Package125
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Cherry F79-30A technical specifications.
General
| Actuator Length | 18.04mm |
| Actuator Material | Thermoplastic, Acetal |
| Actuator Type | PLUNGER |
| Approvals | VDE, cULus |
| Package/Case | 125 |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Contact Plating | Silver, Cadmium |
| Contact Type | 2 change-overs |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel |
| Number of Poles | 2 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Cherry F79-30A Datasheet
Download the complete datasheet for Cherry F79-30A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

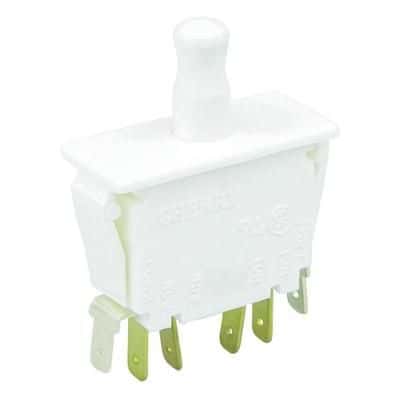

Product Images
