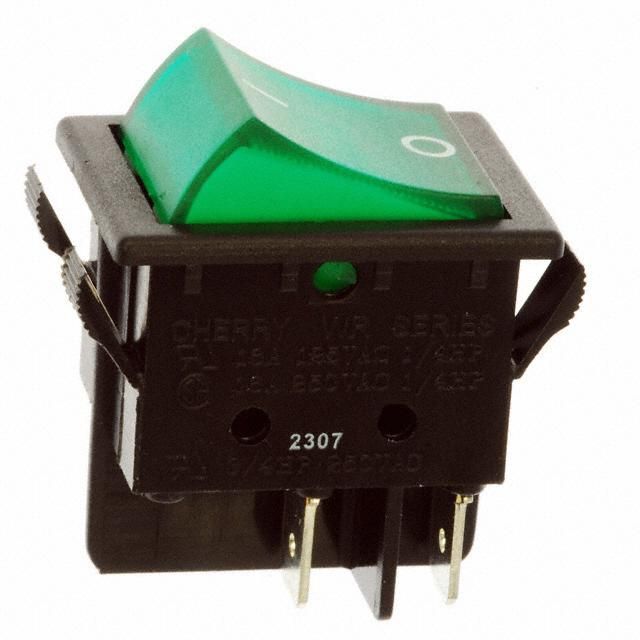

DPST illuminated rocker switch featuring a green polycarbonate actuator and black nylon housing. Rated for 16A at 125VAC, with a 250V AC/DC maximum voltage rating. Offers quick connect termination and panel snap-in mounting. Includes LED illumination in green, with silver contacts and plating. Achieves 6,000 electrical cycles and 50,000 mechanical cycles, with UL, CSA, VDE, and CE approvals.
Package125
Current Rating16A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Cherry WRG32F2FBGLN technical specifications.
General
| Actuator Color | Green |
| Actuator Material | Polycarbonate |
| Actuator Type | Rocker |
| Approvals | UL, CSA, VDE, CE |
| Body Material | Nylon |
| Package/Case | 125 |
| Color | Black |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 16A |
| Depth | 25mm |
| Electrical Life | 6000Cycles |
| Housing Color | Black |
| Illumination Color | Green |
| Illumination Type | LED, Neon, Illuminated, Lamp |
| Lead Free | Lead Free |
| Length | 32mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 65°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Panel, Snap in |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR |
| Switch Function | On-Off |
| Termination | Quick Connect |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
