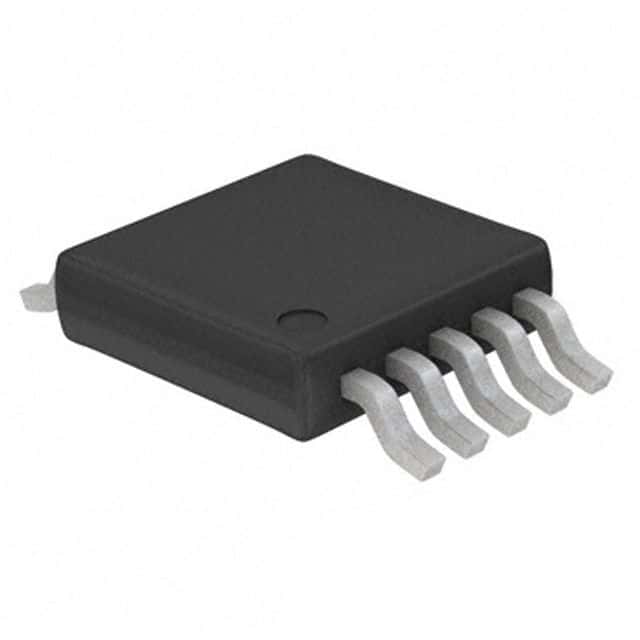

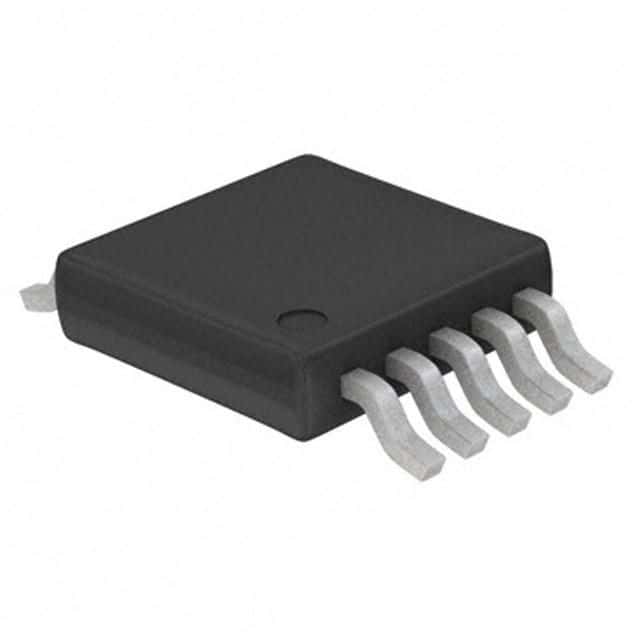

Surface mount Phase-Locked Loop (PLL) IC, operating at up to 75MHz. Features include I2C, SPI, and Serial interfaces, two outputs, and a 3.3V operating supply voltage. Housed in a 3mm MSOP package with tin-matte contact plating, this component offers a 10mA input current and a maximum power dissipation of 60mW. It operates within a temperature range of -10°C to 70°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS2000CP-CZZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cirrus Logic CS2000CP-CZZ technical specifications.
| Package/Case | MSOP |
| Contact Plating | Tin, Matte |
| Frequency | 75MHz |
| Height | 0.95mm |
| Input | Clock |
| Input Current | 10mA |
| Interface | I2C, SPI, Serial |
| Length | 3mm |
| Max Frequency | 75MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 60mW |
| Max Supply Current | 18mA |
| Max Supply Voltage | 3.5V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 12mA |
| Termination | SMD/SMT |
| Width | 3mm |
| RoHS | Compliant |
