Clock generator and synthesizer IC featuring Phase-Locked Loop (PLL) technology. Operates with I2C and SPI interfaces, delivering a 75MHz output frequency. Housed in an MSOP package for surface mounting, this integrated circuit supports a supply voltage range of 3.1V to 3.5V and an operating temperature range of -10°C to 70°C. Includes two clock outputs and is RoHS compliant.
Frequency75MHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS2100CP-CZZ technical specifications.
General
Package/Case
MSOP
Frequency
75MHz
Input
Clock
Input Current
10mA
Max Frequency
75MHz
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Supply Voltage
3.5V
Min Supply Voltage
3.1V
Mount
Surface Mount
Number of Circuits
1
Number of Outputs
2
Package Quantity
96
Packaging
Rail/Tube
PLL
Yes
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS2100CP-CZZ Datasheet
Download the complete datasheet for Cirrus Logic CS2100CP-CZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

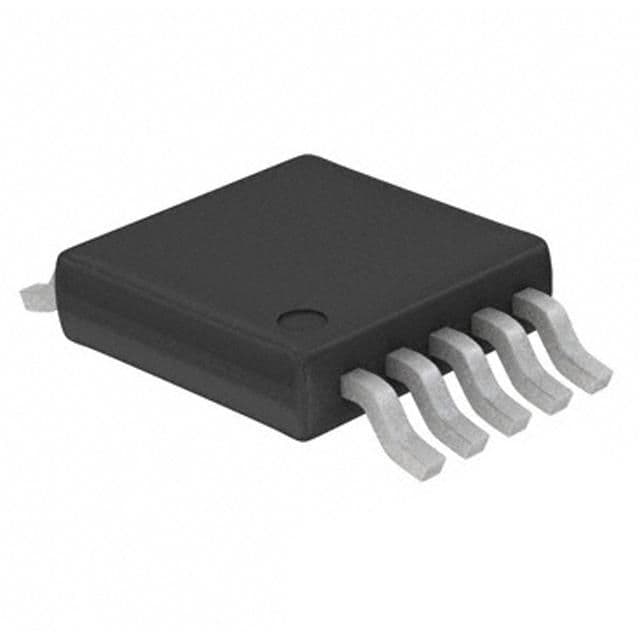

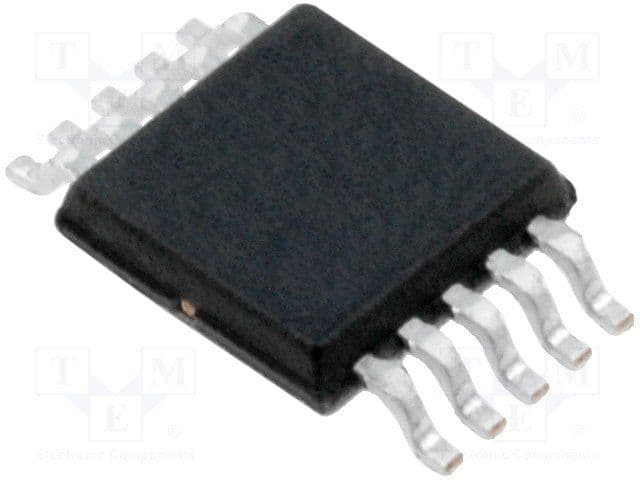

Product Images
