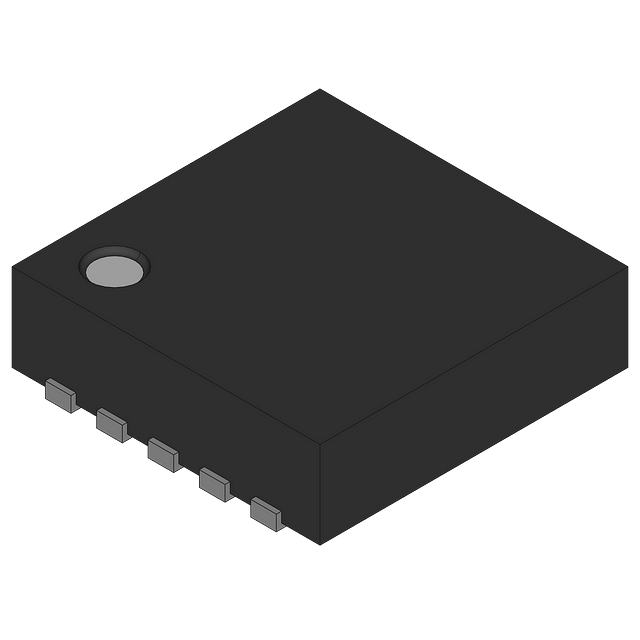

This audio amplifier is available in a DFN package, suitable for surface mount. It operates within a temperature range of -10°C to 70°C and is powered by a single 5V supply. The amplifier has a maximum output power of 2.9W and a voltage gain of 12dB. It also features a high common mode rejection ratio of 71dB and a power supply rejection ratio of 88dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS35L00-CNZR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Common Mode Rejection Ratio | 71dB |
| Contact Plating | Tin, Matte |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Power | 2.83W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Output Power | 2.9W |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 88dB |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Voltage Gain | 12dB |
| RoHS | Compliant |
