24-bit stereo audio codec, featuring 192kHz sample rate and 10Hz bandwidth. This integrated circuit offers serial, I2C, and SPI interfaces, with one A/D and one D/A converter. Packaged in a lead-free TSSOP-24 (4.4mm width, 7.8mm length, 0.9mm height) with tin, matte contact plating, it operates from 3.1V to 5.25V supply voltage. Suitable for surface mount applications, it has a maximum operating temperature of 70°C.
PackageTSSOP
Current31mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS4270-CZZ technical specifications.
General
Bandwidth
10Hz
Package/Case
TSSOP
Contact Plating
Tin, Matte
Height
0.9mm
Interface
Serial, I2C, SPI
Lead Free
Lead Free
Length
7.8mm
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Supply Voltage
5.25V
Min Supply Voltage
3.1V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
24
Number of Channels
1
Number of D/A Converters
1
Package Quantity
62
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sample Rate (Hz)
192kHz
Sampling Rate
192KS/s
Supply Current
31mA
Termination
SMD/SMT
Weight
0.007478oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS4270-CZZ Datasheet
Download the complete datasheet for Cirrus Logic CS4270-CZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

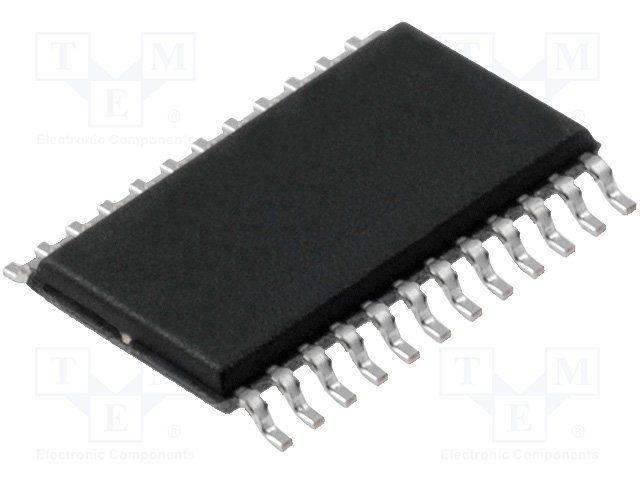

Product Images
