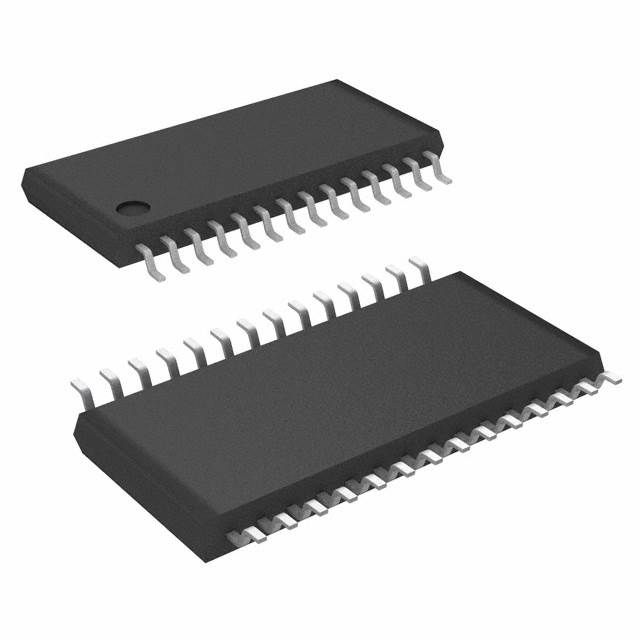

The CS4271-CZZ is a 24-bit dual A/D and dual D/A converter IC with a sample rate of 192kHz. It features I2C and SPI interfaces and operates over a temperature range of -10°C to 70°C. The device is packaged in a TSSOP-28 package and is RoHS compliant. It has a supply current of 45mA and is suitable for consumer applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS4271-CZZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Interface | Serial, I2C, SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.37V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of Channels | 1 |
| Number of D/A Converters | 2 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 192kHz |
| Sampling Rate | 192KS/s |
| Supply Current | 45mA |
| RoHS | Compliant |
