24-bit stereo audio codec IC featuring 114dB SNR and 192kHz sample rate. Supports I2C, SPI, Serial, and I2S interfaces. Operates with supply voltages from 2.37V to 5.25V and a temperature range of -10°C to 70°C. Packaged in a lead-free, 28-pin TSSOP (4.4mm width) for surface mount applications. Includes 2 A/D and 2 D/A converters.
PackageTSSOP
Current45mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS4272-CZZ technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Height | 0.9mm |
| Interface | I2C, SPI, Serial, I2S |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.37V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of Channels | 1 |
| Number of D/A Converters | 2 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 192kHz |
| Sampling Rate | 192KS/s |
| Signal to Noise Ratio (SNR) | 114dB |
| Supply Current | 45mA |
| Termination | SMD/SMT |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Cirrus Logic CS4272-CZZ Datasheet
Download the complete datasheet for Cirrus Logic CS4272-CZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

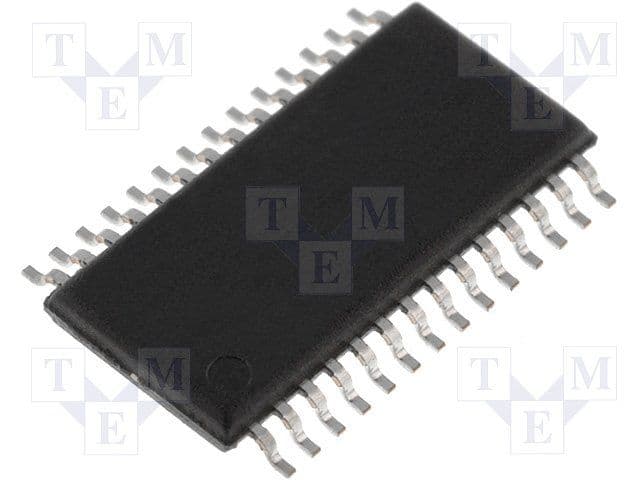

Product Images
