24-bit stereo digital-to-analog converter (DAC) with a 96 kS/s sampling rate. Features serial input loading via SPI interface and bipolar voltage output. Operates from a single 5V supply with a 4.75V to 5.5V range. Packaged in a lead-free, 8-pin SOIC (SOIC-8) surface-mount package with matte tin contact plating.
PackageSOIC
Current15mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Cirrus Logic CS4334-KSZ technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Conversion Rate
96KS/s
Differential Output
No
Height
1.5mm
Input Type
SERIAL
Interface
SPI, Serial
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Power Dissipation
104mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
24
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
5V
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
96KS/s
Supply Current
15mA
Supply Type
Single
Termination
SMD/SMT
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS4334-KSZ Datasheet
Download the complete datasheet for Cirrus Logic CS4334-KSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

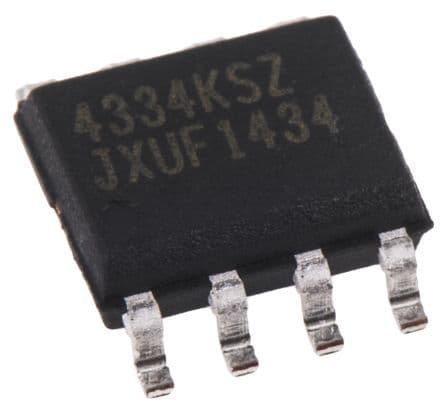

Product Images
