Cirrus Logic
CS4345-DZZ
D/A Converter, 1 Func, Serial Input Loading, PDSO10, 3 MM, PLASTIC, MO-187, TSSOP-10
PackageTSSOP
Current22mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS4345-DZZ technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 192KS/s |
| Interface | Serial, SPI |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 150mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 24 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Output Polarity | Bipolar |
| Output Type | Analog, Voltage |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 192000S/s |
| Series | Popguard® |
| Supply Current | 22mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Cirrus Logic CS4345-DZZ Datasheet
Download the complete datasheet for Cirrus Logic CS4345-DZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

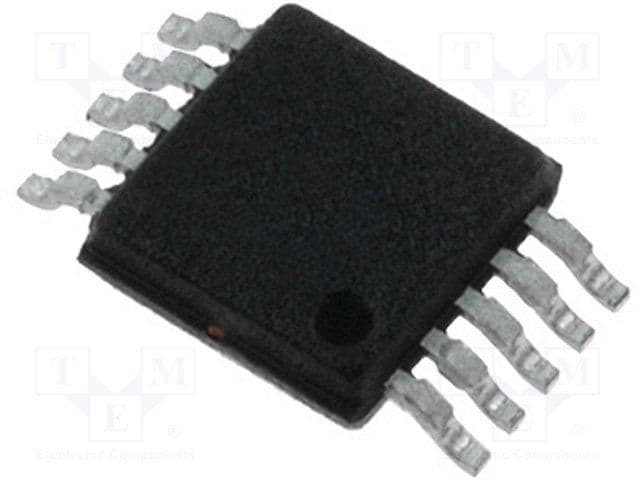

Product Images
