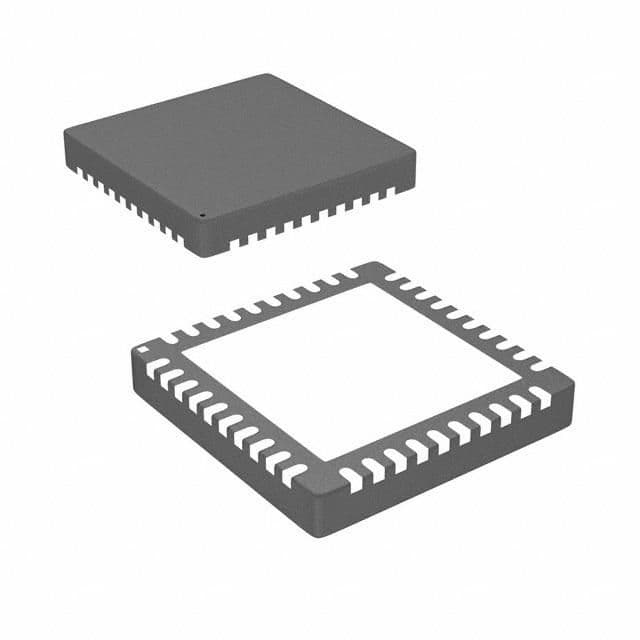

24-bit, 2-channel stereo digital-to-analog converter (DAC) with a 96 kS/s sampling rate. Features serial I2C and 3-wire interfaces, bipolar voltage output, and a QFN-32 package. Operates with a supply voltage range of 1.65V to 2.63V and a nominal supply current of 10mA. This surface-mount component is lead-free and RoHS compliant, suitable for operation between -40°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS43L21-CNZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Tin, Matte |
| Conversion Rate | 96KS/s |
| Interface | Serial, I2C, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.63V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Number of Bits | 24 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 2.5V |
| Output Polarity | Bipolar |
| Output Type | Voltage |
| Package Quantity | 60 |
| Packaging | Tray |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 96000S/s |
| Supply Type | Analog, Digital |
| RoHS | Compliant |
