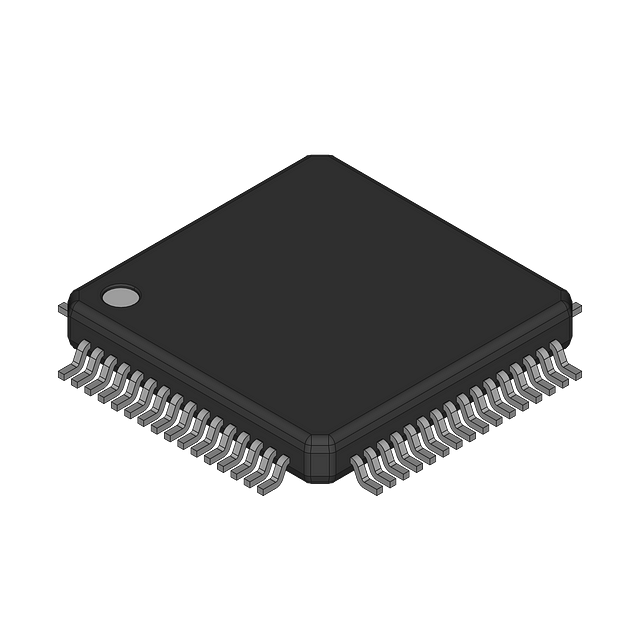

The CS44800-CQZ is an 8-channel I2C/SPI audio amplifier from Cirrus Logic. It operates between 2.37V and 2.62V with a maximum power dissipation of 387mW. The device is packaged in a lead-free LQFP-64 package and is suitable for surface mount applications. The operating temperature range is -10°C to 70°C. The CS44800-CQZ is RoHS compliant and does not contain any SVHC substances.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS44800-CQZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 387mW |
| Max Supply Voltage | 2.62V |
| Min Supply Voltage | 2.37V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Operating Supply Current | 150mA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 160 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 150mA |
| Supply Type | Digital |
| Termination | SMD/SMT |
| RoHS | Compliant |
