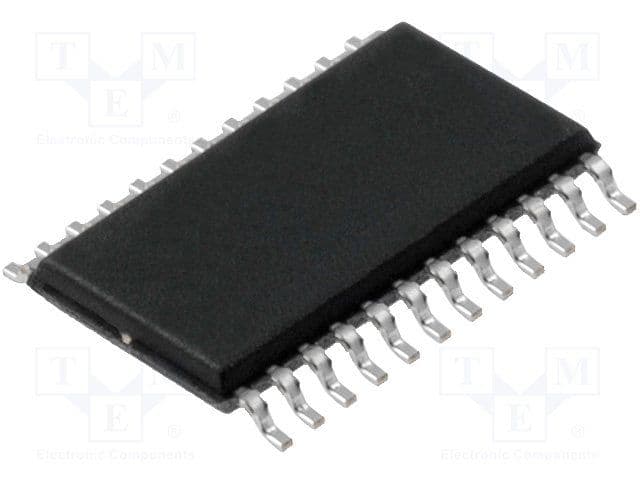

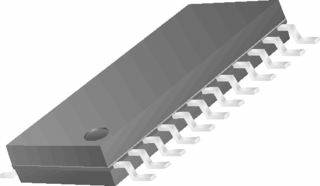

24-bit, 2-channel Delta-Sigma Analog-to-Digital Converter (ADC) with serial interface. Features a 192 kS/s sampling rate and operates from a 5V supply. This surface mount component is housed in a 24-pin TSSOP package with matte tin plating and a 4.4mm width. It offers 2 analog inputs and a power consumption of 135mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS5361-KZZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cirrus Logic CS5361-KZZ technical specifications.
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Height | 0.9mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 24 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 62 |
| Packaging | Rail/Tube |
| Power Consumption | 135mW |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 192KS/s |
| Supply Current | 22mA |
| Supply Type | Analog, Digital |
| Termination | SMD/SMT |
| Voltage | 5V |
| Weight | 0.007478oz |
| Width | 4.4mm |
| RoHS | Compliant |
