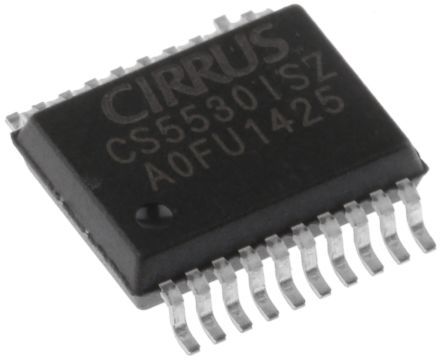

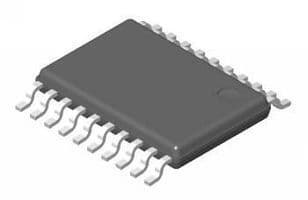

24-bit Delta-Sigma Analog-to-Digital Converter (ADC) with a 3.84 kS/s sampling rate. Features a single differential input channel and SPI/3-wire serial interface. Operates with dual supply voltages from 2.375V to 3.15V or a single supply of 4.75V to 5.25V. Packaged in a 20-pin SSOP (Shrink Small Outline Package) with matte tin plating, suitable for surface mounting. RoHS compliant with a maximum operating temperature of 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS5530-ISZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cirrus Logic CS5530-ISZ technical specifications.
| Package/Case | SSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 3840S/s |
| Dual Supply Voltage | 2.5V |
| Height | 1.88mm |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Serial, 3-WIRE |
| Length | 7.5mm |
| Max Dual Supply Voltage | 3.15V |
| Min Dual Supply Voltage | 2.375V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 24 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 66 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.84KS/s |
| Supply Current | 6mA |
| Supply Type | Single, Dual |
| Termination | SMD/SMT |
| Width | 5.6mm |
| RoHS | Compliant |
